B24Specifications;
SN: WXE508F10093;
Model: WD1200BEVS-08UST0;
Date: 12 MAY 2008;
DCM: HACTJANB ;
Product of: Thailand;
PCB Sticker: 2061-701499-600 AF;
PCB Revision: 2060-701499-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : AF6/2806;
1   : 1   : AC8/2760;
;

;

ROM F/W version……………………. : 00070032;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD #1 Specs:;
Serial Number: WXE508ET7112;
Model: WD1200BEVS-08UST0;
Date: 05 JUL 2008;
DCM: HACT2ANB;
Product of: Thailand;
PCB Sticker: 2061-701499-600 AF;
PCB Revision: 2060-701499-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : ADA/2778;
1   : 1   : B0E/2830;
ROM F/W version……………………. : 00070038;
Preamp vendor……………………… : 0x0002;
Preamp revision……………………. : 0x0001;
;
;
;
;
;

;

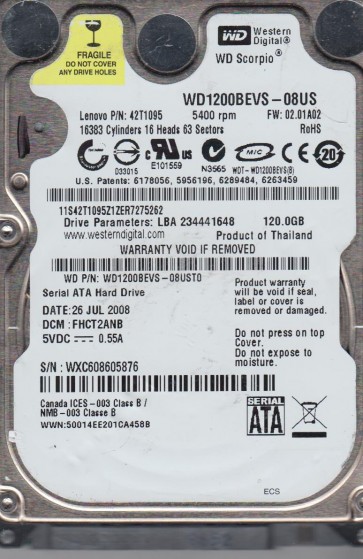

HDD with Serial Number: WXC608605876;

;

Model: WD1200BEVS-08UST0;
Date: 26 JUL 2008;
DCM: FHCT2ANB;
Product of: Thailand;
PCB Sticker: 2061-701499-600 AF;
PCB Revision: 2060-701499-000 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B88/2952;
1 : 1 : ABC/2748;

;

ROM F/W version……………………. : 00070038;
Preamp vendor……………………… : 0x0002;
Preamp revision……………………. : 0x0001;

;

Specifications;
SN: WXC608273411;
Model: WD1200BEVS-08UST0;
Date: 14 JUN 2008;
DCM: FBOTJBBB ;
Product of: Thailand;
PCB Sticker: 2061-701499-600 AD;
PCB Revision: 2060-701499-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : AF6/2806;
1   : 1   : ADE/2782;

;

ROM F/W version……………………. : 00070038;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD #2 Specs:;

;

SN: WXC308074896;
Model: WD1200BEVS-08UST0;
Date: 19 MAR 2008;
DCM: FBCTJBBB ;
Product of: Thailand;
PCB Sticker: 2061-701499-600 AD;
PCB Revision: 2060-701499-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B6F/2927;
1   : 1   : B98/2968;

;

ROM F/W version……………………. : 00070032;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD #1 Specs:;
Serial Number: WXC408149826;
Model: WD1200BEVS-08UST0;
Date: 28 APR 2008;
DCM: FBCTJABB;
Product of: Thailand;
PCB Sticker: 2061-701499-600 AE;
PCB Revision: 2060-701499-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : AF2/2802;
1   : 1   : AE4/2788;
ROM F/W version……………………. : 00070032;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
;
;
;
;

;

HDD with Serial Number: WXC608395107;
Model: WD1200BEVS-08UST0;
Date: 13 JUL 2008;
DCM: FBCT2ABB;
Product of: Thailand;
PCB Sticker: 2061-701499-600 AF;
PCB Revision: 2060-701499-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B1D/2845;
1 : 1 : AE8/2792;
ROM F/W version……………………. : 00070038;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0002;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WXC408K15500;
Model: WD1200BEVS-08UST0;
Date: 28 APR 2008;
DCM: FACTJHBB;
Product of: Thailand;
PCB Sticker: 2061-701499-600 AE;
PCB Revision: 2060-701499-000 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B60/2912;
1 : 1 : A93/2707;
ROM F/W version……………………. : 00070032;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

Specifications;
SN: WXC308477197;
Model: WD1200BEVS-08UST0;
Date: 20 APR 2008;
DCM: FACTJANB ;
Product of: Thailand;
PCB Sticker: 2061-701499-600 AD;
PCB Revision: 2060-701499-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : ADA/2778;
1   : 1   : AB8/2744;
;

;

ROM F/W version……………………. : 00070032;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD #1 Specs:;

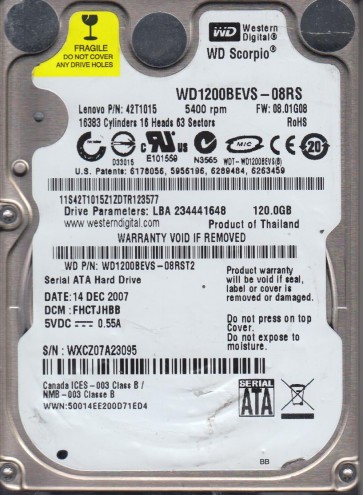

SN: WXCZ07A23095;
Model: WD1200BEVS-08RST2;
Date: 14 DEC 2007;
DCM: FHCTJHBB ;
Product of: Thailand;
PCB Sticker: 2061-701450-Z00 AG;
PCB Revision: 2060-701450-011 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 898/2200;
1   : 2   : 8CE/2254;
2   : 3   : 908/2312;

;

ROM F/W version……………………. : 00110086;
Preamp vendor……………………… : 0x0004;
Preamp revision……………………. : 0x0001;

;
