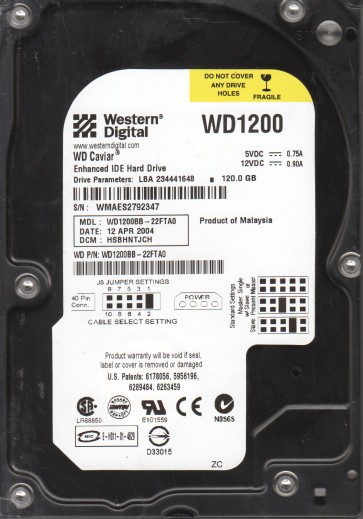

Specifications;
SN: WMAES2792347;
Model: WD1200BB-22FTA0;
Date: 12 APR 2004;
DCM: HSBHNTJCH ;
Product of: Malaysia;
PCB Sticker: 2061-001173-000 DHD9;
PCB Revision: 2060-001173-004 REV A;

;

;
Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 4;
Disabled heads…………………….. : Yes;
Head map………………………….. : 0,1,4,5;
ROM version……………………….. : 15.C6.;
;
;
;
;

;

Specifications;
SN: WMAET1660197;
Model: WD1200BB-22FTA0;
Date: 12 APR 2004;
DCM: HSBHCTJAH ;
Product of: Malaysia;
PCB Sticker: 2061-001173-000 DHD9;
PCB Revision: 2060-001173-004 REV A;

;

Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 3;
Head map………………………….. : 0,1,5;
ROM version……………………….. : 15.46.;
;
;
;
;

;

HDD with Serial Number: WMAET1593725;
Model: WD1200BB-22FTA0;
Date: 30 MAR 2004;
DCM: HSBACTJAA;
Product of: Malaysia;
PCB Sticker: 2061-001173-000 DH;
PCB Revision: 2060-001173-004 REV A;
Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 3;
Head map………………………….. : 0,1,5;

;

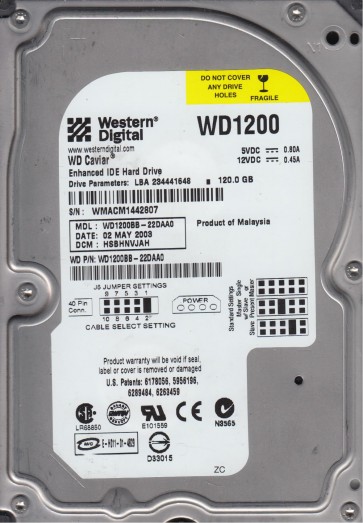

HDD with Serial Number: WMACM1442807;
Model: WD1200BB-22DAA0;
Date: 02 MAY 2003;
DCM: HSBHNVJAH;
Product of: Malaysia;
PCB Sticker: 2061-001128-100 D;
PCB Revision: 2060-001128-005 REV A;
Heads configuration………………… : From map;
Heads number………………………. : 4;
The number of heads in use………….. : 4;
Head map………………………….. : 0,1,2,3;

;

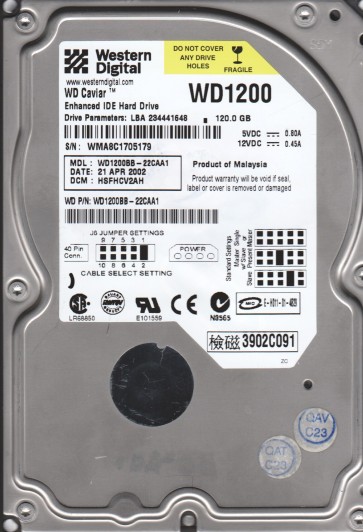

Specifications;
SN: WMA8C1705179;
Model: WD1200BB-22CAA1;
Date: 21 APR 2002;
DCM: HSFHCV2AH ;
Product of: Malaysia;
PCB Sticker: 0000 001092-200 G;
PCB Revision: 2060-001092-007 REV A;

;

;

HDD with Serial Number: WMA8C2933885;
Model: WD1200BB-22CAA1;
Date: 29 OCT 2002;
DCM: HSEHNA2CH;
Product of: Malaysia;
PCB Sticker: 2061-001092-300 J;
PCB Revision: 2060-001092-007 REV A;
ROM version……………………….. : 17.2E W;
Head map………………………….. : 0,1,2,3,4,5;

;

HDD with Serial Number: WMA8C3683519;
Model: WD1200BB-22CAA1;
Date: 25 APR 2003;
DCM: HSEHCV2AH;
Product of: Malaysia;
PCB Sticker: 2061-001092-300 LA;
PCB Revision: 2060-001092-007 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A0E/2574;
1 : 3 : 9E7/2535;
2 : 4 : 9F2/2546;
3 : 5 : 9FB/2555;
4 : 6 : 9F9/2553;
5 : 7 : 9C8/2504;

;

ROM F/W version……………………. : 000500AS;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

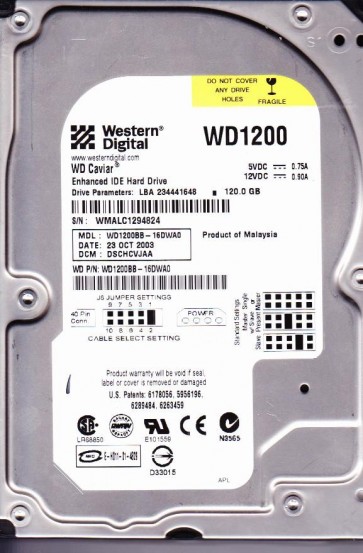

Specifications:;
Model WD1200BB-16DWA0;
SN WMALC1294824;
DATE 23 OCT 2003;
DCM DSCHCVJAA;
Product of Malaysia;
PCB Sticker: 2061-001173-000 DE;
PCB Revision: 2060-001173-004 REV A;

;

Head map………………………….. : 0,1,4;
ROM version……………………….. : 15.39.;

;

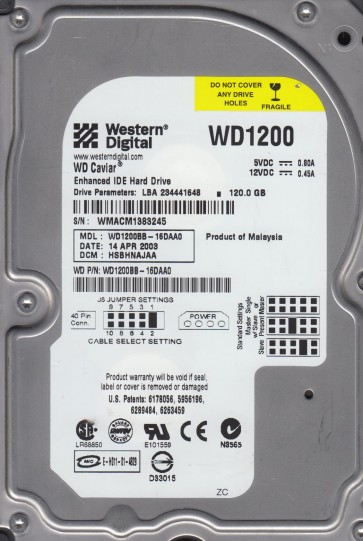

HDD #1 Specs:;
SN: WMACM1383245;
Model: WD1200BB-16DAA0;
Date: 14 APR 2003;
DCM: HSBHNAJAA ;
Product of: Malaysia;
PCB Sticker: 2061-001128-100 D;
PCB Revision: 2060-001128-005 REV A;

;

ROM version……………………….. : 65.71.;
Head map………………………….. : 0,1,2,3;
;
;
;

;

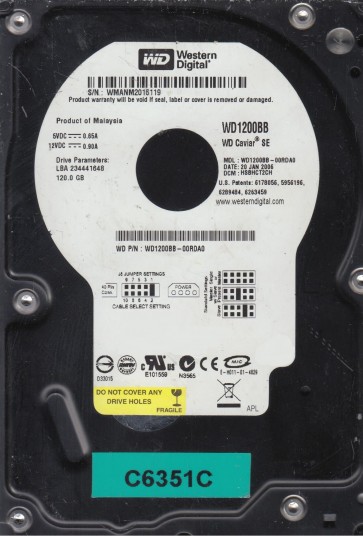

HDD with Serial Number: WMANM2016119;
Model: WD1200BB-00RDA0;
Date: 20 JAN 2006;
DCM: HSBHCT2CH;
Product of: Malaysia;
PCB Sticker: 2061-701292-B00 AA;
PCB Revision: 2060-701292-001 REV A;
;

;
