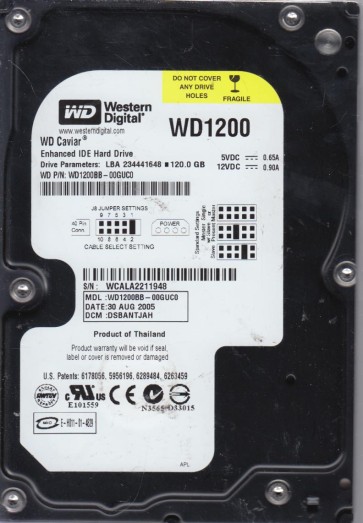

HDD with Serial Number: WCALA2211948;
Model: WD1200BB-00GUC0;
Date: 30 AUG 2005;
DCM: DSBANTJAH;
Product of: Thailand;
PCB Sticker: 2061-701266-200 AG;
PCB Revision: 2060-701266-001 REV A;
;

;

HDD #1 Specs:;
Serial Number: WMAES3040922;
Model: WD1200BB-00FTA0;
Date: 29 APR 2004;
DCM: HSBHNTJCH;
Product of: Malaysia;
PCB Sticker: 2061-001173-000 DH;
PCB Revision: 2060-001173-004 REV A;

;

ROM version……………………….. : 15.CA.;
Head map………………………….. : 0,1,4,5;
;

;

HDD #1 Specs:;
Serial Number: WCAES1172833;
Model: WD1200BB-00FTA0;
Date: 03 FEB 2004;
DCM: HSBHNTJAH;
Product of: Thailand;
PCB Sticker: 2061-001173-000 DH;
PCB Revision: 2060-001173-004 REV A;

;

Head map………………………….. : 0,1,4,5;
ROM version……………………….. : 15.3Q.;
;
;
;

;

Specifications;

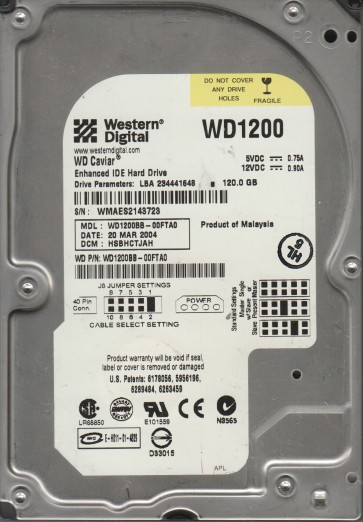

SN: WMAES2143723;
Model: WD1200BB-00FTA0;
Date: 20 MAR 2004;
DCM: HSBHCTJAH ;
Product of: Malaysia;
PCB Sticker: 2061-001173-000 DH;
PCB Revision: 2060-001173-004 REV A;

;

;

HDD with Serial Number: WMAET1286034;
Model: WD1200BB-00FTA0;
Date: 30 DEC 2003;
DCM: HSBACVJAH;
Product of: Malaysia;
PCB Sticker: 2061-001173-000 DG;
PCB Revision: 2060-001173-004 REV A;
Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 3;
Head map………………………….. : 0,1,5;

;

Specifications;
SN: WMAES3826839;
Model: WD1200BB-00FTA0;
Date: 26 JUL 2004;
DCM: HSBACTJAH ;
Product of: Malaysia;
PCB Sticker: 2061-001173-200 AA;
PCB Revision: 2060-001173-004 REV A;

;

Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 4;
Head map………………………….. : 0,1,4,5;
;
;

;

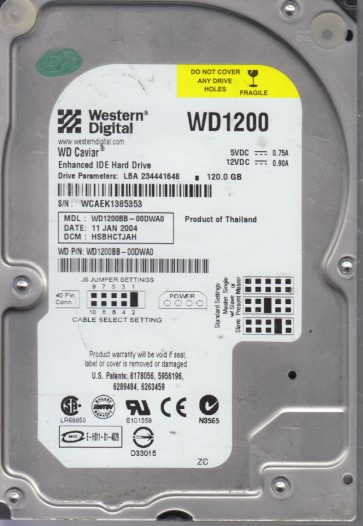

HDD with Serial Number: WCAEK1385353;
Model: WD1200BB-00DWA0;
Date: 11 JAN 2004;
DCM: HSBHCTJAH;
Product of: Thailand;
PCB Sticker: 2061-001173-000 DG;
PCB Revision: 2060-001173-004 REV A;
ROM F/W: 15.05R15;
Heads map: 0,1,4,5;
;
;

;

HDD #1 Specs:;
Serial Number: WMACM2080076;
Model: WD1200BB-00DAA3;
Date: 17 OCT 2003;
DCM: HSBHNVJCH;
Product of: Malaysia;
PCB Sticker: 2061-00128-100 DD;
PCB Revision: 2060-001128-005 REV A;

Micro Jogs
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;

;

;

HDD with Serial Number: WMACM2298806;
Model: WD1200BB-00DAA3;
Date: 01 SEP 2003;
DCM: HSBHNVJAH;
Product of: Malaysia;
PCB Sticker: 2061-001128-100 DC;
PCB Revision: 2060-001128-005 REV A;

;

ROM version……………………….. : 75.71.;
Head map………………………….. : 0,1,2,3;
;
;
;

;

HDD with Serial Number: WMACM2203480;
Model: WD1200BB-00DAA3;
Date: 01 AUG 2003;
DCM: HSBHCA2CH;
Product of: Malaysia;
PCB Sticker: 2061-001128-100 DB;
PCB Revision: 2060-001128-005 REV A;
;

;
