HDD with Serial Number: WXK0A69J2557;
Model: WD10TMVV-11A27S0;
Date: 22 SEP 2009;
DCM: HBCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701675-201 03P;
PCB Revision: 2060-701675-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C75/3189;
1 : 1 : BB6/2998;
2 : 2 : C6C/3180;
3 : 3 : B79/2937;
4 : 4 : C3C/3132;
5 : 5 : B9C/2972;
ROM F/W version……………………. : 0011000M;
Heads map…………………………. : 0,1,2,3,4,5;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0006;

;

HDD #1 Specs:;
SN: WXE0A8912088;
Model: WD10TMVV-11A27S0;
Date: 27 SEP 2009;
DCM: HBCVJBBB ;
Product of: Thailand;
PCB Sticker: 2061-701675-201 03P;
PCB Revision: 2060-701675-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C15/3093;
1   : 1   : C23/3107;
2   : 2   : C6E/3182;
3   : 3   : B90/2960;
4   : 4   : C0A/3082;
5   : 5   : C62/3170;

;

ROM F/W version……………………. : 0011000M;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0006;

;

HDD #2 Specs:;

;

Serial Number: WXK0A89F1278;
Model: WD10TMVV-11A27S0;
Date: 13 OCT 2009;
DCM: HBCVJBBB;
Product of: Thailand;
PCB Sticker: 2061-701675-201 03P;
PCB Revision: 2060-701675-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C48/3144;
1   : 1   : B7B/2939;
2   : 2   : C3D/3133;
3   : 3   : B89/2953;
4   : 4   : B8B/2955;
5   : 5   : BA0/2976;

;

ROM F/W version……………………. : 0011000M;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0006;

;

HDD with Serial Number: WXB0A99D9535;
Model: WD10TMVV-11A27S0;
Date: 21 OCT 2009;
DCM: HBBVJBBB;
Product of: Thailand;
PCB Sticker: 2061-701675-201 03P;
PCB Revision: 2060-701675-001 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CBF/3263;
1 : 1 : B83/2947;
2 : 2 : C8B/3211;
3 : 3 : B4F/2895;
4 : 4 : C77/3191;
5 : 5 : BAC/2988;

;

ROM F/W version……………………. : 0011000M;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0006;

;

HDD #1 Specs:;
SN: WXE0C7921790;
Model: WD10TMVV-11A27S0;
Date: 24 SEP 2009;
DCM: EHCVJHBB ;
Product of: Thailand;
PCB Sticker: 2061-701675-203 03P;
PCB Revision: 2060-701675-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C60/3168;
1   : 1   : C50/3152;
2   : 2   : C4C/3148;
3   : 3   : C44/3140;
4   : 4   : C5A/3162;
5   : 5   : C3C/3132;

;

ROM F/W version……………………. : 0011000M;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0006;

;

HDD #2 Specs:;

HDD #3 Specs:;
;

Serial Number: WXE0C79T6541;
Model: WD10TMVV-11A27S0;
Date: 13 OCT 2009;
DCM: EHCVJBBB;
Product of: Thailand;
PCB Sticker: 2061-701675-201 03P;
PCB Revision: 2060-701675-001 REV P1;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BE1/3041;
1   : 1   : B67/2919;
2   : 2   : C18/3096;
3   : 3   : C00/3072;
4   : 4   : C09/3081;
5   : 5   : B63/2915;

ROM F/W version……………………. : 0011000M;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0006;

;

HDD #1 Specs:;
Serial Number: WXE0C7931269;
Model: WD10TMVV-11A27S0;
Date: 25 OCT 2009;
DCM: EHBVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701675-201 03P;
PCB Revision: 2060-701675-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C59/3161;
1   : 1   : BCB/3019;
2   : 2   : C27/3111;
3   : 3   : B96/2966;
4   : 4   : C85/3205;
5   : 5   : B98/2968;

;

ROM F/W version……………………. : 001100CM;
Preamp Vendor……………………… : 0001;
Preamp Rev………………………… : 0006;

;

HDD #2 Specs:;
Serial Number: WXE0C7950180;
Model: WD10TMVV-11A27S0;
Date: 24 SEP 2009;
DCM: EBCVJBBB;
Product of: Thailand;
PCB Sticker: 2061-701675-201 03P;
PCB Revision: 2060-701675-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C19/3097;
1   : 1   : C20/3104;
2   : 2   : CAF/3247;
3   : 3   : C0B/3083;
4   : 4   : CA0/3232;
5   : 5   : C46/3142;
;
ROM F/W version……………………. : 0011000M;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0006;

;

HDD #1 Specs:;

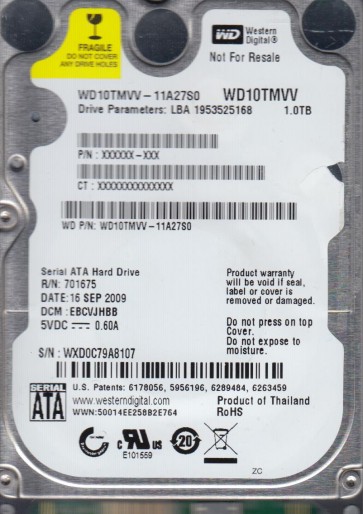

Serial Number: WXD0C79A8107;
Model: WD10TMVV-11A27S0;
Date: 16 SEP 2009;
DCM: EBCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701675-201 03P;
PCB Revision: 2060-701675-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C63/3171;
1   : 1   : B88/2952;
2   : 2   : CC7/3271;
3   : 3   : BAA/2986;
4   : 4   : C34/3124;
5   : 5   : BBA/3002;
ROM F/W version……………………. : 0011000M;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0006;
;
;
;
;
;

;

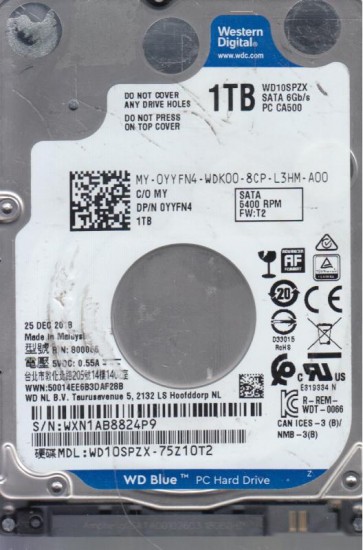

HDD with Serial Number: WXN1AB8824P9;
Model: WD10SPZX-75Z10T2;
Date: 25 DEC 2018;
Product of: Malaysia;
PCB Sticker: 800066-306 06;
PCB Revision: 2060-800066-006 REV P1;
ROM F/W: 00050066
Heads map: 0,1
Preamp vendor: 0x0000
Preamp revision: 0x0001;

;

HDD with Serial Number: WX61A38DA2S1;
Model: WD10SPZX-75Z10T1;
Date: 11 APR 2018;
DCM: HHNT2BN;
Product of: Malaysia;
PCB Sticker: 800066-304 04;
PCB Revision: 2060-800066-004 REV P1;
;

;
