HDD with Serial Number: WCC0T0855282;
Model: WD10EARX-32N0YB0;
Date: 07 SEP 2012;
DCM: EHRNNT2MHB;
Product of: Thailand;
PCB Sticker: 2061-771698-T04 AA;
PCB Revision: 2060-771698-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : CBA/3258;
1   : 1   : C31/3121;
2   : 2   : CBA/3258;
ROM F/W version……………………. : 00510053;
Heads map…………………………. : 0,1,2;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0005;
;
;

;

HDD with Serial Number: WCC0S0909829;
Model: WD10EARX-32N0YB0;
Date: 03 SEP 2013;
DCM: EHRNNT2MGB;
Product of: Thailand;
PCB Sticker: 2061-771698-T04 AA;
PCB Revision: 2060-771698-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C21/3105;
1 : 1 : C71/3185;
2 : 3 : C87/3207;
ROM F/W version……………………. : 00510053;
Heads map…………………………. : 0,1,3;
Preamp vendor…………………….. : 0x0000;
Preamp revision…………………… : 0x0005;

;

HDD with Serial Number: WCC0S0947075;
Model: WD10EARX-32N0YB0;
Date: 05 SEP 2012;
DCM: EHRNHT2MHB;
Product of: Thailand;
PCB Sticker: 771698-T04 AA;
PCB Revision: 2060-771698-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : D07/3335;
1 : 1 : CF3/3315;
2 : 3 : CCD/3277;
ROM F/W version……………………. : 00510053;
Heads map…………………………. : 0,1,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0005;

;

HDD with Serial Number: WMC0S0148027;
Model: WD10EARX-32N0YB0;
Date: 05 AUG 2012;
DCM: EHNNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-771698-T04 AA;
PCB Revision: 2060-771698-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C17/3095;
1 : 1 : C5E/3166;
2 : 3 : C5B/3163;
ROM F/W version……………………. : 00510053;
Heads map…………………………. : 0,1,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0005;

;

HDD with Serial Number: WCC0S0841634;
Model: WD10EARX-32N0YB0;
Date: 17 AUG 2012;
DCM: EARNHT2MHB;
Product of: Thailand;
PCB Sticker: 2061-771698-T04 AA;
PCB Revision: 2060-771698-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CFA/3322;
1 : 1 : CD3/3283;
2 : 3 : CD4/3284;
ROM F/W version……………………. : 00510053;
Heads map…………………………. : 0,1,32;
Preamp vendor……………………. : 0x0000;
Preamp revision…………………… : 0x0005;

;

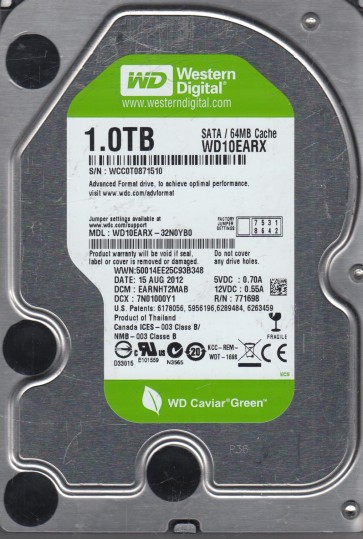

HDD with Serial Number: WCC0T0871510;
Model: WD10EARX-32N0YB0;
Date: 15 AUG 2012;
DCM: EARNHT2MAB;
Product of: Thailand;
PCB Sticker: 771698-T04 AA;
PCB Revision: 2060-771698-004 REV A;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CB0/3248;
1 : 1 : C68/3176;
2 : 2 : CBA/3258;
ROM F/W version……………………. : 00510053;
Heads map…………………………. : 0,1,2;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0005;

;

HDD with Serial Number: WCC0S0843208;
Model: WD10EARX-32N0YB0;
Date: 17 AUG 2012;
DCM: EARNHT2CAB;
Product of: Thailand;
PCB Sticker: 2061-771698-T04 AA;
PCB Revision: 2060-771698-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C5D/3165;
1 : 1 : CC2/3266;
2 : 3 : CFB/3323;
ROM F/W version……………………. : 00510053;
Heads map…………………………. : 0,1,3;
Preamp vendor…………………….. :  0x0000;
Preamp revision…………………… : 0x0005;

;

HDD with Serial Number: WCC0T0997486;
Model: WD10EARX-32N0YB0;
Date: 27 NOV 2012;
DCM: EANNNT2CAB;
Product of: Thailand;
PCB Sticker: 2061-771698-904 AG;
PCB Revision: 2060-771698-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CEB/3307;
1 : 1 : D31/3377;
2 : 2 : CF0/3312;

;

ROM F/W version:00510053;
Preamp vendor:0x0000;
Preamp revision:0x0005;

;

HDD with Serial Number: WCC0S0789646;
Model: WD10EARX-22N0YB0;
Date: 06 JAN 2012;
DCM: HHRNHT2CAB;
Product of: Thailand;
PCB Sticker: 2061-771698-904 AC;
PCB Revision: 2060-771698-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C6A/3178;
1 : 1 : D03/3331;
2 : 3 : D0A/3338;

;

ROM F/W version: 00510045;
Preamp vendor: 0x0000;
Preamp revision: 0x0005;

;

HDD #1 Specs:;
Serial Number: WMC0S0272069;
Model: WD10EARX-22N0YB0;
Date: 18 FEB 2012;
DCM: HHNNHT2MBB;
Product of: Thailand;
PCB Sticker: 2061-771698-904 AE;
PCB Revision: 2060-771698-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C25/3109;
1   : 1   : C7D/3197;
2   : 3   : C57/3159;
Preamp Vendor……………………… : 0000;
Preamp Rev………………………… : 0005;
;
;
;

;
