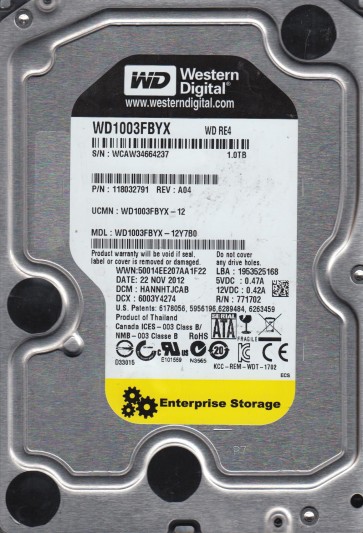

HDD with Serial Number: WCAW34664237;
Model: WD1003FBYX-12Y7B0;
Date: 22 NOV 2012;
DCM: HANNHTJCAB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AE;
PCB Revision: 2060-771702-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B74/2932;
1   : 1   : C9C/3228;
2   : 2   : BA8/2984;
3   : 3   : C98/3224;
ROM F/W version……………………. : 0005009P;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

HDD with Serial Number: WCAW33458873;
Model: WD1003FBYX-12Y7B0;
Date: 23 DEC 2011;
DCM: HANNHTJAAB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AA;
PCB Revision: 2060-771702-001 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CF0/3312;
1 : 1 : CA8/3240;
2 : 2 : D10/3344;
3 : 3 : CA4/3236;
ROM F/W version……………………. : 0005001P;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WMAW30719002;
Model: WD1003FBYX-12Y7B0;
Date: 04 MAR 2012;
DCM: HANCNTJCAB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AA;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BC4/3012;
1   : 1   : D0C/3340;
2   : 2   : BC0/3008;
3   : 3   : D10/3344;
ROM F/W version……………………. : 0005001P;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;
;
;
;

;

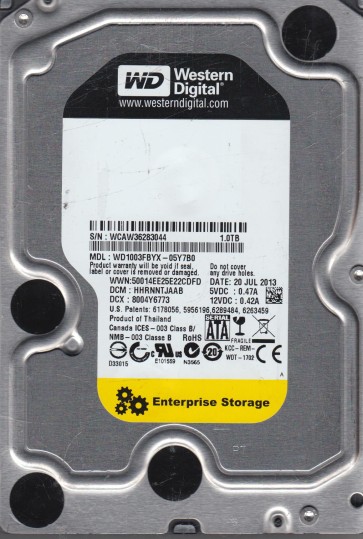

HDD with Serial Number: WCAW36283044;
Model: WD1003FBYX-05Y7B0;
Date: 20 JUL 2013;
DCM: HHRNNTJAAB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AGD9;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A8C/2700;
1   : 1   : B24/2852;
2   : 2   : A9C/2716;
3   : 3   : A88/2696;
ROM F/W version……………………. : 000500A2;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision…………………. : 0x0001;

;

HDD with Serial Number: WCAW33406553;
Model: WD1003FBYX-05Y7B0;
Date: 09 OCT 2011;
DCM: HBRNHTJAHB;
Product of: Thailand;
PCB Sticker: 2061-771702-101 AH;
PCB Revision: 2060-771702-001 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C6C/3180;
1 : 1 : D6C/3436;
2 : 2 : C64/3172;
3 : 3 : D50/3408;

;

ROM F/W version……………………. : 0005001P;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAW30893833;
Model: WD1003FBYX-05Y7B0;
Date: 16 JAN 2011;
DCM: HARCHTJCBB;
Product of: Thailand;
PCB Sticker: 2061-771702-101 AE;
PCB Revision: 2060-771702-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : D04/3332;
1 : 1 : C6C/3180;
2 : 2 : CA8/3240;
3 : 3 : C78/3192;
ROM F/W version……………………. : 0005001G;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAW35363210;
Model: WD1003FBYX-05Y7B0;
Date: 06 MAR 2013;
DCM: HANNNTJABB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AE;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C70/3184;
1   : 1   : D30/3376;
2   : 2   : C60/3168;
3   : 3   : D30/3376;
ROM F/W version……………………. : 000500A2;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;
;
;
;

;

HDD with Serial Number: WCAW32658815;
Model: WD1003FBYX-05Y7B0;
Date: 29 AUG 2011;
DCM: HANNHTJAAB;
Product of: Thailand;
PCB Sticker: 2061-771702-101 AH;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BE4/3044;
1   : 1   : C58/3160;
2   : 2   : BCC/3020;
3   : 3   : C70/3184;
ROM F/W version……………………. : 0005001P;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;
;
;
;

;

HDD with Serial Number: WMAW30738791;
Model: WD1003FBYX-05Y7B0;
Date: 27 FEB 2012;
DCM: HANCHTJCHB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AA;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : CE8/3304;
1   : 1   : CF0/3312;
2   : 2   : D24/3364;
3   : 3   : CF8/3320;
ROM F/W version……………………. : 0005001P;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision…………………. : 0x0001;
;
;
;

;

HDD with Serial Number: WCAW30813601;
Model: WD1003FBYX-05Y7B0;
Date: 23 JAN 2011;
DCM: HANCHTJABB;
Product of: Thailand;
PCB Sticker: 2061-771702-101 AE;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C5C/3164;
1   : 1   : CA8/3240;
2   : 2   : C80/3200;
3   : 3   : CE4/3300;
ROM F/W version……………………. : 0005001G;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision…………………. : 0x0001;
;
;

;
