HDD with Serial Number: WCAW36638213;
Model: WD1003FBYX-708DB0;
Date: 20 SEP 2013;
DCM: HANNNTJCHB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AGD9;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : ABC/2748;
1 : 1 : A04/2564;
2 : 2 : B1C/2844;
3 : 3 : A0C/2572;
ROM F/W version……………………. : 000500A2;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAW33005585;
Model: WD1003FBYX-18Y7B0;
Date: 28 AUG 2011;
DCM: HHRNHTJAHB;
Product of: Thailand;
PCB Sticker: 2061-771702-101 AH;
PCB Revision: 2060-771702-001 REV A;
;

;

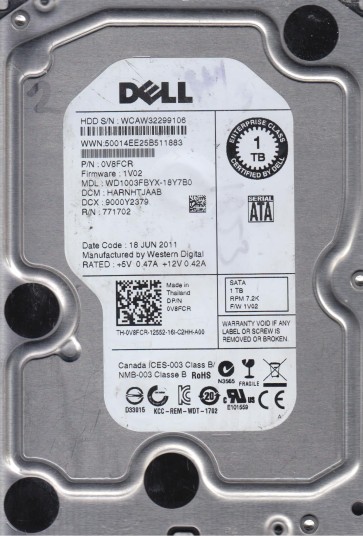

HDD with Serial Number: WCAW32299106;
Model: WD1003FBYX-18Y7B0;
Date: 18 JUN 2011;
DCM: HARNHTJAAB;
Product of: Thailand;
PCB Sticker: 2061-771702-101 AH;
PCB Revision: 2060-771702-001 REV A;
;

;

HDD with Serial Number: WCAW33457397;
Model: WD1003FBYX-12Y7B0;
Date: 23 DEC 2011;
DCM: HHRNNTJAAB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AA;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CC8/3272;
1 : 1 : D14/3348;
2 : 2 : D14/3348;
3 : 3 : CD0/3280;
ROM F/W version……………………. : 0005001P;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WCAW33462579;
Model: WD1003FBYX-12Y7B0;
Date: 23 DEC 2011;
DCM: HHRNHTJAHB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AA;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C44/3140;
1 : 1 : CD4/3284;
2 : 2 : C20/3104;
3 : 3 : CC8/3272;
ROM F/W version……………………. : 0005001P;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WCAW34623079;
Model: WD1003FBYX-12Y7B0;
Date: 24 NOV 2012;
DCM: HHNNHTJCBB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AE;
PCB Revision: 2060-771702-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C10/3088;
1   : 1   : C0C/3084;
2   : 2   : C10/3088;
3   : 3   : C0C/3084;
ROM F/W version……………………. : 0005009P;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

HDD with  Serial Number: WCAW34589558;
Model: WD1003FBYX-12Y7B0;
Date: 27 NOV 2012;
DCM: HHNNHTJAHB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AE;
PCB Revision: 2060-771702-001 REV A;

;

;

HDD with Serial Number: WCAW33516924;
Model: WD1003FBYX-12Y7B0;
Date: 23 DEC 2011;
DCM: HBRNNTJABB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AA;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C74/3188;
1 : 1 : D08/3336;
2 : 2 : C4C/3148;
3 : 3 : D18/3352;
ROM F/W version……………………. : 0005001P;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WCAW34619074;
Model: WD1003FBYX-12Y7B0;
Date: 24 NOV 2012;
DCM: HBNNNTJAAB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AE;
PCB Revision: 2060-771702-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C7C/3196;
1   : 1   : C70/3184;
2   : 2   : C1C/3100;
3   : 3   : C70/3184;
ROM F/W version……………………. : 0005009P;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

HDD with Serial Number: WCAW36722374;
Model: WD1003FBYX-12Y7B0;
Date: 11 OCT 2013;
DCM: HARNHTJCAB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AGD9;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B20/2848;
1 : 1 : B20/2848;
2 : 2 : B14/2836;
3 : 3 : B30/2864;
ROM F/W version……………………. : 000500A2;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

HDD with Serial Number: WMAW30244260;
Model: WD1003FBYX-12Y7B0;
Date: 18 JAN 2012;
DCM: HARNHTJCAB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AA;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CE8/3304;
1 : 1 : D50/3408;
2 : 2 : CE4/3300;
3 : 3 : D34/3380;

;

ROM F/W version: 0005001P;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;
