WD1600YS-01SHB1, DCM DBBACTJCAN, Western Digital 160GB SATA 3.5 Hard Drive

Specifications:;
Model WD1600YS-01SHB1;
SN WCAP01855507;
DATE 13 FEB 2007;
DCM DBBACTJCAN;
Product of Thailand;
PCB Sticker: 2061-701335-200 AE;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4EC/1260;
1   : 1   : 530/1328;
2   : 4   : 506/1286;
3   : 5   : 4F0/1264;

;

ROM F/W version……………………. : 080VC;
Preamp Vendor……………………… : 0001;
Preamp Rev………………………… : 0004;
;
;
;
;

;

WD1600YS-01SHB0, DCM HSBHNT2AHN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAP01598608;
Model: WD1600YS-01SHB0;
Date: 29 NOV 2006;
DCM: HSBHNT2AHN;
Product of: Thailand;
PCB Sticker: 2061-701335-200 AC;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4AE/1198;
1   : 1   : 4E2/1250;
2   : 4   : 4AC/1196;
3   : 5   : 4EA/1258;
ROM F/W version……………………. : 080NC;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

WD1600YS-01SHB0, DCM HBCHNT2CHB, Western Digital 160GB SATA 3.5 Hard Drive

HDD #1 Specs:;
Serial Number: WCAP01428282;
Model: WD1600YS-01SHB0;
Date: 23 SEP 2006;
DCM: HBCHNT2CHB;
Product of: Thailand;
PCB Sticker: 2061-701335-200 AB;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 498/1176;
1 : 1 : 4CA/1226;
2 : 4 : 490/1168;
3 : 5 : 4C6/1222;

;

ROM F/W version……………………. : 080GC;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;

;

WD1600SD-01KCC0, DCM HSBHNTJAH, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAL97325624;
Model: WD1600SD-01KCC0;
Date: 20 DEC 2005;
DCM: HSBHNTJAH;
Product of: Thailand;
PCB Sticker: 2061-701267-200 AM;
PCB Revision: 2060-701267-001 REV A;
;

ROM version……………………….. : 21.DEJ;
Head map………………………….. : 0,1,4,5;

;

WD1600SD-01KCC0, DCM DSCHCTJAH, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WMAL94004866;
Model: WD1600SD-01KCC0;
Date: 23 JUN 2005;
DCM: DSCHCTJAH;
Product of: Malaysia;
PCB Sticker: 2061-701267-200 AK;
PCB Revision: 2060-701267-001 REV A;
;

ROM version……………………….. : 21.DCJ;
Head map………………………….. : 0,1,4,5;

;

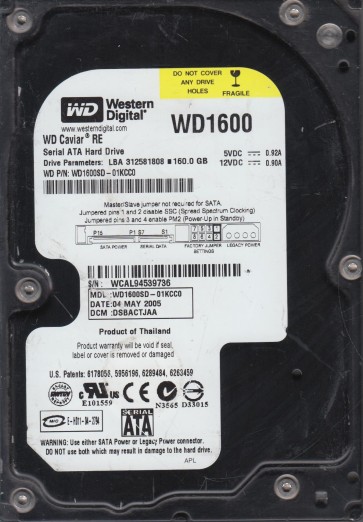

WD1600SD-01KCC0, DCM DSBACTJAA, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAL94539736;
Model: WD1600SD-01KCC0;
Date: 04 MAY 2005;
DCM: DSBACTJAA;
Product of: Thailand;
PCB Sticker: 2061-701267-200 AH;
PCB Revision: 2060-701267-001 REV A;
;

ROM version……………………….. : 21.D7J;
Head map………………………….. : 0,1,4,5;
;
;

;

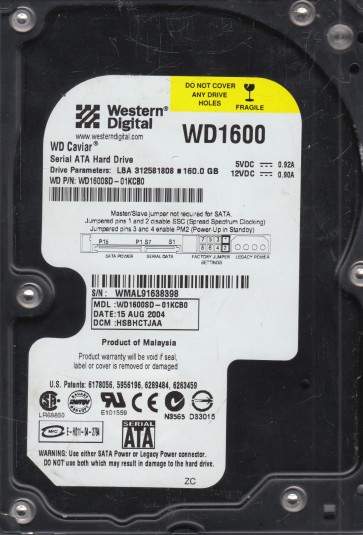

WD1600SD-01KCB0, DCM HSBHCTJAA, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WMAL91638398;
Model: WD1600SD-01KCB0;
Date: 15 AUG 2004;
DCM: HSBHCTJAA;
Product of: Malaysia;
PCB Sticker: 2061-001267-000 AG;
PCB Revision: 2060-001267-001 REV A;
;

ROM version……………………….. : 08.DRD;
Head map………………………….. : 0,1,4,5;

HDD with Serial Number: WMAL91638558;
Model: WD1600SD-01KCB0;
Date: 15 AUG 2014;
DCM: HSBHCTJAA;
Product of: Malaysia;
PCB Sticker: 2060-001267-000 AG;
PCB Revision: 2060-001267-001 REV A;
;

ROM version……………………….. : 08.DRD;
Head map………………………….. : 0,1,4,5;

;
