HDD with Serial Number: WCAW33JKEL9X;
Model: WD1003FBYZ-010FB0;
Date: 10 DEC 2014;
DCM: HARNHTJCAB;
Product of: Thailand;
PCB Sticker: 2061-771702-D01 AA;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BB0/2992;
1   : 1   : A50/2640;
2   : 2   : B94/2964;
3   : 3   : AFC/2812;
ROM F/W version……………………. : 000500AC;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision…………………. : 0x0001;
;
;
;

HDD with Serial Number: WCAW37749898;
Model: WD1003FBYZ-010FB0;
Date: 18 MAY 2014;
DCM: HARNHTJCAB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AHD12;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AF4/2804;
1 : 1 : B10/2832;
2 : 2 : B14/2836;
3 : 3 : AC8/2760;

;

;
ROM F/W version: 000500A2;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;

HDD with Serial Number: WCAW32FNSJJS;
Model: WD1003FBYZ-010FB0;
Date: 04 NOV 2014;
DCM: HARNHTJAAB;
Product of: Thailand;
PCB Sticker: 2061-771702-D01 AA;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AD8/2776;
1 : 1 : B18/2840;
2 : 2 : AAC/2732;
3 : 3 : B38/2872;
ROM F/W version……………………. : 000500AC;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WMAW31565097;
Model: WD1003FBYX-70Y7B0;
Date: 22 MAY 2012;
DCM: HBRNNTJCAB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AC;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CB4/3252;
1 : 1 : D48/3400;
2 : 2 : C98/3224;
3 : 3 : D28/3368;

;

ROM F/W version: 0005009C;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;

HDD with Serial Number: WCAW31178576;
Model: WD1003FBYX-70Y7B0;
Date: 24 FEB 2011;
DCM: HBRCHTJCAB;
Product of: Thailand;
PCB Sticker: 2061-771702-101 AG;
PCB Revision: 2060-771702-001 REV A;
;

ROM F/W version 0005000Q;
Heads map :  0,1,2,3;
Preamp vendor: x0001;
Preamp revision: x0001;
;
;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : CF8/3320;
1   : 1   : D38/3384;
2   : 2   : D18/3352;
3   : 3   : D34/3380

;

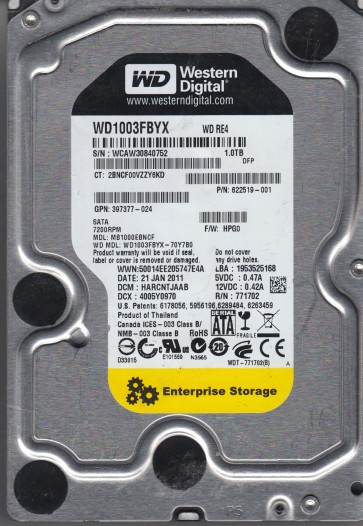

HDD with Serial Number: WCAW30840752;
Model: WD1003FBYX-70Y7B0;
Date: 21 JAN 2011;
DCM: HARCNTJAAB;
Product of: Thailand;
PCB Sticker: 2061-771702-101 AE;
PCB Revision: 2060-771702-001 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C5C/3164;
1 : 1 : C78/3192;
2 : 2 : C64/3172;
3 : 3 : C80/3200;
ROM F/W version……………………. : 0005000Q;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAW30736006;
Model: WD1003FBYX-70Y7B0;
Date: 16 JAN 2011;
DCM: HANCNTJABB;
Product of: Thailand;
PCB Sticker: 2061-771702-101 AE;
PCB Revision: 2060-771702-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C30/3120;
1 : 1 : CA8/3240;
2 : 2 : C3C/3132;
3 : 3 : CAC/3244;
ROM F/W version……………………. : 0005000Q;
Heads map…………………………. : 0,1,2,3;
Preamp vendor…………………… : 0x0001;
Preamp revision…………………. : 0x0001;

;

HDD with Serial Number: WCAW36633416;
Model: WD1003FBYX-708DB0;
Date: 18 SEP 2013;
DCM: HHRNNTJAAB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AGD9;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AF8/2808;
1 : 1 : A88/2696;
2 : 2 : B40/2880;
3 : 3 : A88/2696;
ROM F/W version……………………. : 000500A2;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAW36636272;
Model: WD1003FBYX-708DB0;
Date: 20 SEP 2013;
DCM: HARNHTJCAB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AGD9;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B54/2900;
1 : 1 : B68/2920;
2 : 2 : B28/2856;
3 : 3 : AF8/2808;
ROM F/W version……………………. : 000500A2;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAW36298480;
Model: WD1003FBYX-708DB0;
Date: 24 JUL 2013;
DCM: HARNHTJAHB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AGD9;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B1C/2844;
1 : 1 : B3C/2876;
2 : 2 : B14/2836;
3 : 3 : B18/2840;
ROM F/W version……………………. : 000500A2;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAW37194994;
Model: WD1003FBYX-708DB0;
Date: 20 JAN 2014;
DCM: HARNHTJAAB;
Product of: Thailand;
PCB Sticker: 2061-771702-B01 AHD12;
PCB Revision: 2060-771702-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A50/2640;
1 : 1 : B04/2820;
2 : 2 : B10/2832;
3 : 3 : B2C/2860;
ROM F/W version……………………. : 000500A2;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;
